YR1B10KCC
Manufacturer:
TE Connectivity
Mfr.Part #:
YR1B10KCC
Datasheet:
Description:

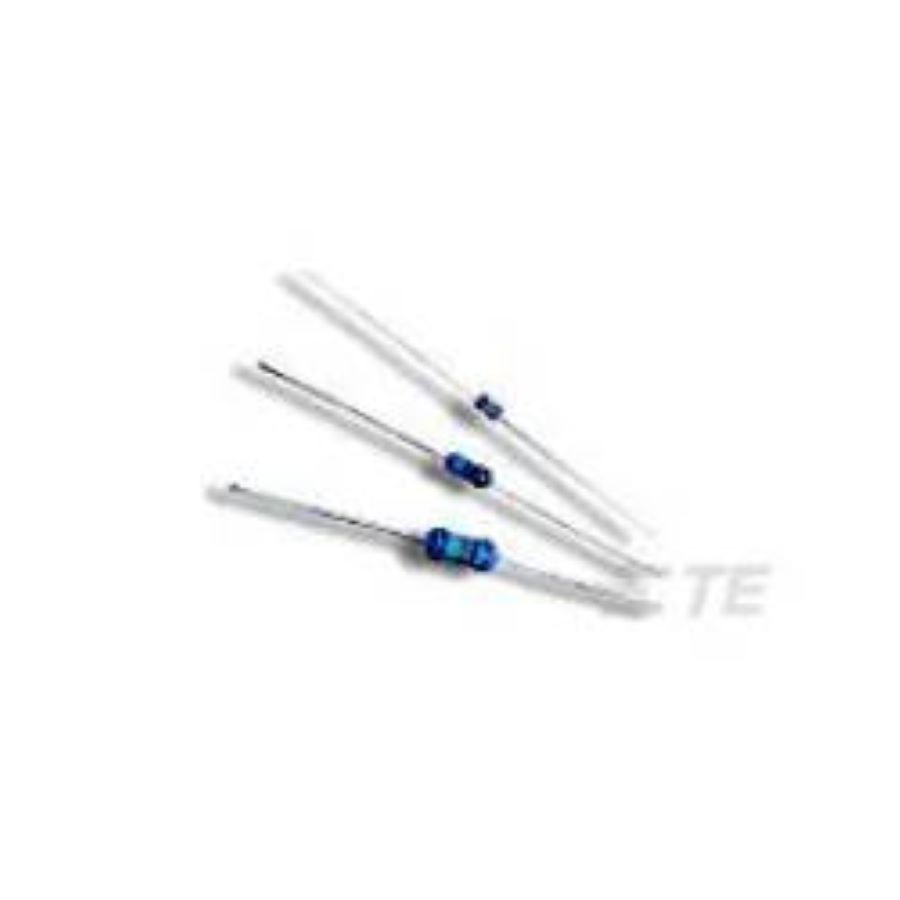

Through-Hole Resistors Through Hole 10 kΩ 0.1 % 250 mW Metal Film, Thin Film
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 500 V |
| Tolerance | 0.1 % |
| Length | 6.3 mm |
| Termination | Axial |
| Diameter | 2.3 mm |
| Max Operating Temperature | 155 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Resistance | 10 kΩ |
| Power Rating | 250 mW |
| Composition(Kit Type) | Metal Film, Thin Film |
| Temperature Coefficient | 15 ppm/°C |
| Number of Resistors | 1 |
| Packaging | Ammo Pack |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Lead Diameter | 600 µm |
| REACH SVHC | No SVHC |
| Lead Length | 25 mm |
| Military Standard | Not |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Max Power Dissipation | 250 mW |
| Number of Terminations | 2 |
| ELV | Compliant |
| Schedule B | 8533210090 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
Stock: 14461
Distributors
pcbx
pcbxUnit Price$0.46936
Ext.Price$0.46936
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46936 | $0.46936 |
| 10 | $0.29580 | $2.95800 |
| 50 | $0.23906 | $11.95300 |
| 100 | $0.19321 | $19.32100 |
| 500 | $0.16671 | $83.35500 |
| 1000 | $0.12653 | $126.53000 |
| 3000 | $0.12350 | $370.50000 |
| 5000 | $0.12054 | $602.70000 |
| 10000 | $0.11541 | $1154.10000 |
